Tuesday, January 11, 2011

Trimming the Sides

Now that the sides are glued in place each needs to be shaped to fit the contour of the back of the guitar. The tail-block is 4" and the heel block is more shallow. I drew parallel lines from the tail-block to a location about 2" behind the waist – from there the sides will angle down to the heel-block. You can see the lines drawn on the sides in the photo below (heel block).
Almost all of this wood removal was done with this handy small plane. However I did use a chisel from time to time.

Getting close, I only removed about 1/8" in the back but had to remove almost a whole inch in the front.

Just a little further...
Once I was very close to each block, I used that sanding board (shelf) that has 80 grit sandpaper spray-mounted to it. This was VERY noisy, almost like a turkey call or fingers on a chalkboard. This will create two flat planes. I will round them off slightly, later after the kerfing is glued on.

I used sidewalk chalk to see where the sandpaper was hitting and where I needed to sand more...

Here the sides are sanded flush with the tail-block.

The heel-block is sanded almost to completion, but I had to stop. It was getting late and I'm sure my wife would appreciate me stopping all the noise. I will finish this up tonight – not much further to go. This photo gives you a pretty good idea what the contour will be...

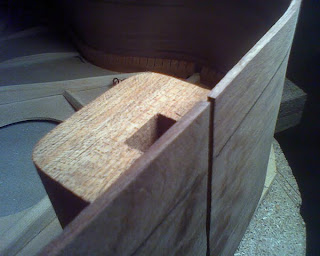

I decided to start to chisel out the mortise for the neck joint. This makes way less noise. I stopped short of the soundboard – I didn't want to accidentally puncture it with the chisel. I think I will probably cut the rest with a fret saw or maybe the dremel.Can't wait to get back on it tonight!
